Cooling capacity from 90 kW to 1200 kW

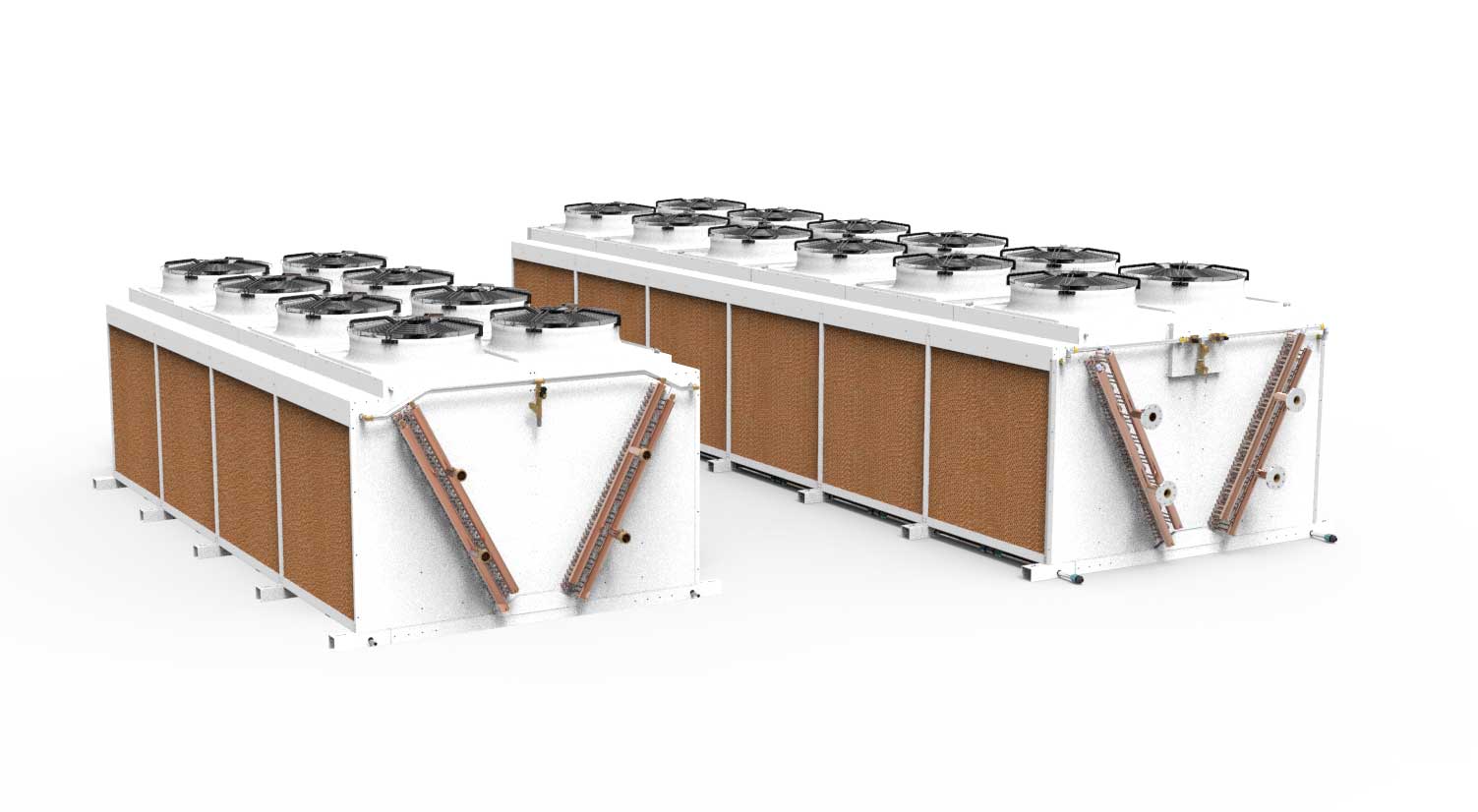

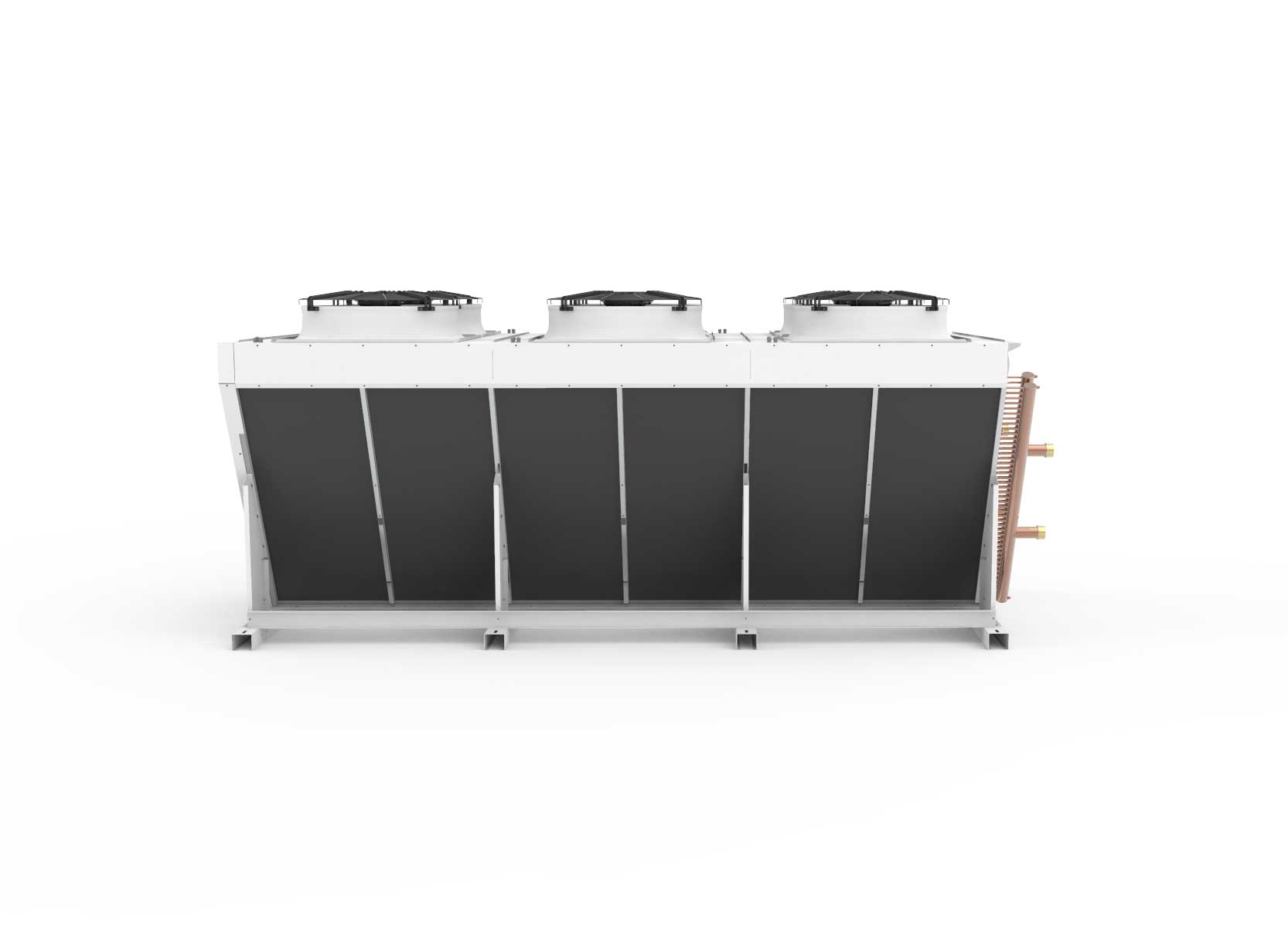

ROEN EST’s V-shaped dry coolers with axial fans are suitable for out-door applications, using highly sustainable R718 refrigerant and brines. Configurable for low noise levels and capacity to exactly match sys-tem requirements. Compared to cooling towers and wet systems, our V-shaped dry coolers require little maintenance and fare highly ef-fective in preventing Legionella contamination. The V-shape is ideal for remote installations where footprint is limited.
FEATURES
• Use H2O natural refrigerant and brine
• Finned coil: Built with 1/2” copper tubes and louvered alumin-ium fins. Designed with ‘Floating pack system’, which allows the coil to levitate to avoid leaks
• Fans: Equipped as standard with AC fan motors.
Axial fans with external rotor (380-480V III 50/60Hz) Compliant with ErP Directive Ø 800, 910 mm
• Casing: Pre-painted aluminum
• Design pressure: PS=30bar PT=43bar
OPTIONS
FIN MATERIAL
• Copper Fins
• Coated Fins
• Other not standard fin material
CASING
CASING
• Anti dampers
ELECTRICAL OPTIONS
• EC fans
• Speed controller
• Wiring into centralized box (included with EC Fans)
• Service switch Wiring + Magnetothermics
OTHER
• AquaAero
• Blygold
• Spray adiabatic system
• Pads adiabatic system (coming soon)
• Fan diffuser
